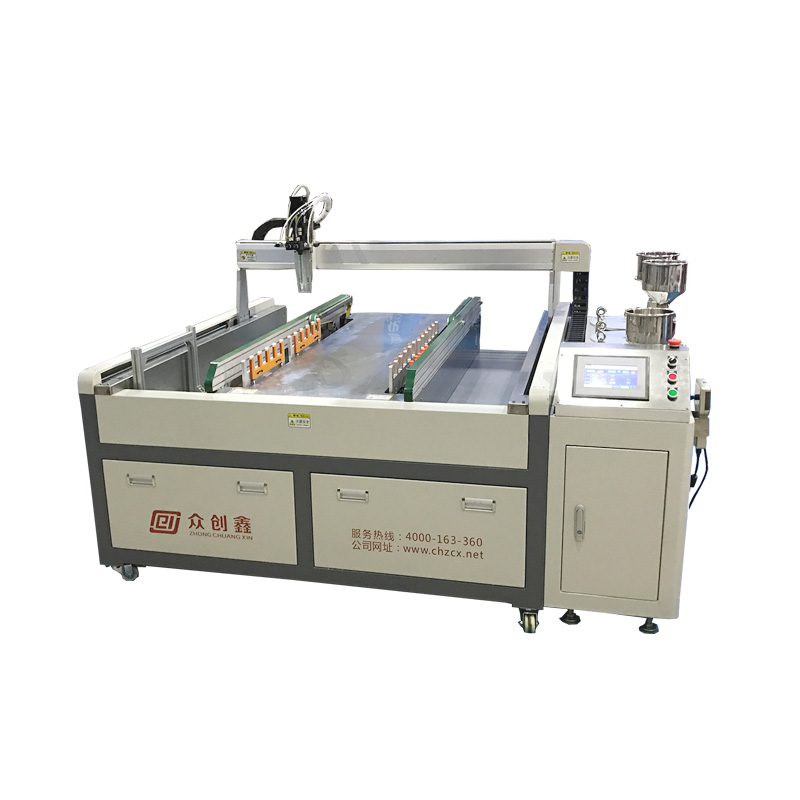

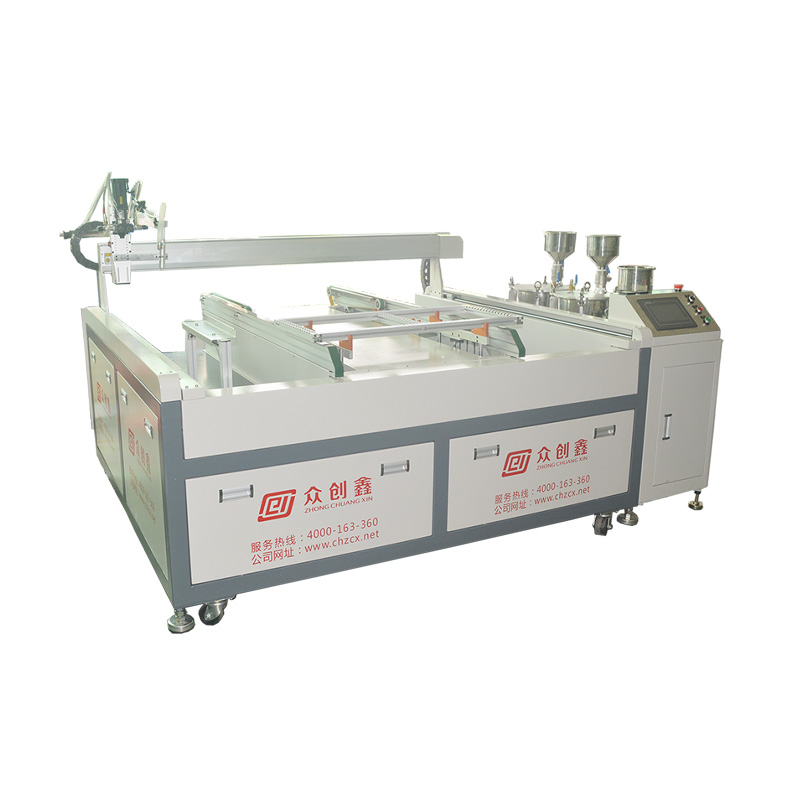

It is the first choice for outdoor product filling and glue, and welcome to visit the factory.

1. Can realize universal single and double group glue glue;
2. Suitable for line lamps and wall washing lamps and other types of products without control board, general size products;
3. Fast switching products to improve production capacity;
4. On-line grouting can achieve single machine operation or the next process line;
5. Can realize single head, multi-head irrigation and glue, and improve production efficiency greatly;
6. The integration design of glue and glue, with the use with the following, automatic operation.
7. Original timing system: prevent the shift, stop the glue during the break, and lead to the solidification of the mixing system and the unlimited time of operation.
8. Automatic mixing of AB glue, adjustable running track, adjustable running speed, dynamic mixing glue, automatic cleaning function, optional glue bucket heating, glue barrel stirring, vacuum and other functions!

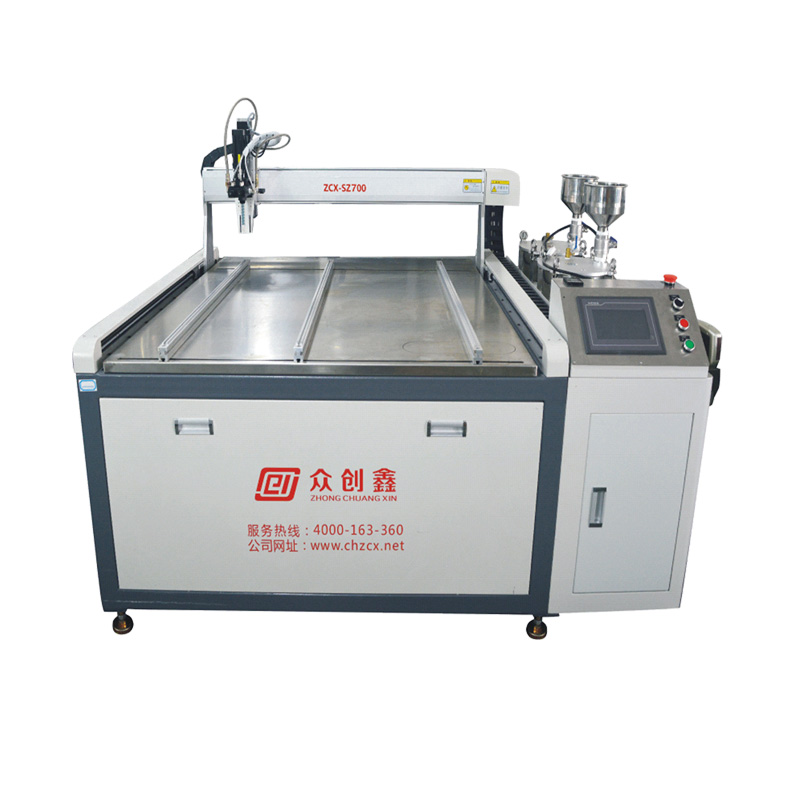

The parameters of ZCX online type pouring machine:
1. Model: zcx-jd1300 (intelligent motion control card +PLC+ control screen (program setting, modification, storage, etc.)
2. External dimension: 2060*1820*1350mm connecting platform 2000mm
3. Glue ratio: 10:1 (other ratio can be specified)
4. Programming style: teaching programming
5. Operation trajectory: point, line, box, circle, arc
6. Operation speed: XZ500mm/s Y axis 250mm/s (displacement)
7. Operation accuracy: + 0.5mm (displacement)
8. Glue accuracy: the gel quantity is plus or minus 1%, the ratio: plus or minus 1%
9. Glue speed: 10-150g/5s adjustable (out of glue, depending on proportion and characteristics of glue)
10. Input pressure: 0.5-0.8Mpa
11. Machine stroke: X/Y/Z 1200*1000*100mm
12. Pressure of the head seal: MAX is less than 2.6Mpa glue viscosity: <10000CPS
13. Rated power: 220V 50HZ about 3500W

Applicable glue:

Single group of silica gel, glass glue;Double component silica gel, PU adhesive, epoxy resin glue, double liquid AB glue and other glue



Applicable products:

Wash wall lamp, line lamp, lighting lamp, point light source, waterproof power supply and other LED products
